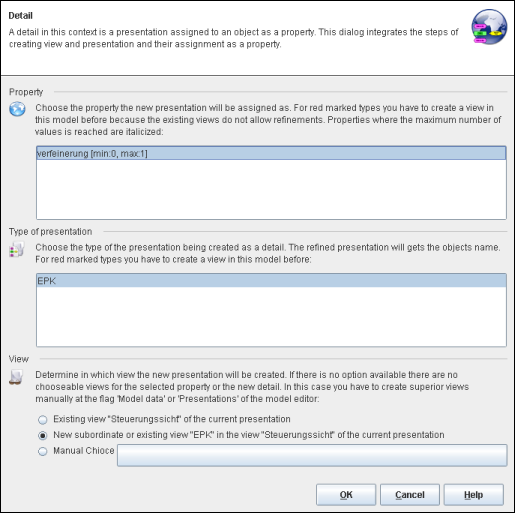

To keep track of huge modeling projects Cubetto Toolset provides the function to refine models. A detail in this context is a presentation assigned to an object as a propertytype. This dialog integrates the steps of creating view and presentation and their assignment as a property.
- Property
Choose the propertytype the new presentation will be assigned as. For red marked types you have to create a view in this model before because the existing views do not allow refinements. Properties where the maximum number of values is reached are italicized.
- Type of presentation
Choose the type of the presentation being created as a detail. The refined presentation will gets the objects name. For red marked types you have to create a view in this model before.
- View
Determine in which view the new presentation will be created. If there is no option available there are no chooseable views for the selected property or the new detail. In this case you have to create superior views manually at the flag 'Model data' or 'Presentations' of the model editor.

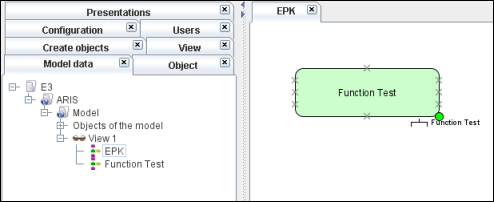

Existing view "..." of the current presentation
creates the new detailed presentation in the same view where the parent presentation is located

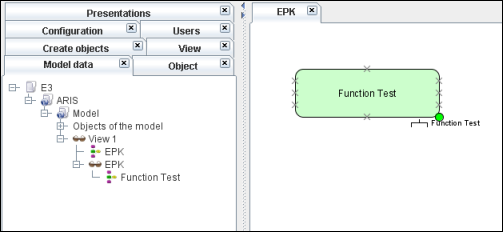

New subordinate or existing view "..." in the view "..." of the current presentation
The new detailed presentation will be created in a view subordinate to the current view. This view will get the name of the presentation where the detailing comes from.
Manual Choice
Choose one of the existing views, where the detailed presentation will be created
